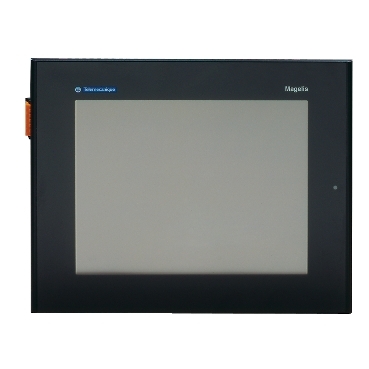

| range of product | Magelis XBTGT |
|---|---|
| product or component type | Advanced touchscreen panel |
| display type | Backlit colour TFT LCD |
| display colour | 65536 colours |
| display resolution | 640 x 480 pixels VGA |
| display size | 7.5 inch |
| software type | Configuration software |
| software designation | Vijeo Designer |
| operating system | Magelis |
| processor name | CPU RISC |
| processor frequency | 266 MHz |
| memory description | 512 kB SRAM back up of data with lithium battery back-up 32 MB flash EPROM application memory |
| integrated connection type | RJ45 connector COM2 serial link with RS485 interface at <= 187.5 kbit/s, compatible with Siemens MPI (187.5 kbits/s) male SUB-D 9 connector COM1 serial link with RS232C/RS422/RS485 interface at <= 115.2 kbits/s removable screw terminal block connector power supply RJ45 connector Ethernet TCP/IP 3 removable screw terminal block connector digital output removable screw terminal block connector audio output removable screw terminal block connector digital input USB type A master port (V1.1) mini-jack connector audio input RCA connector composite video input (NTSC/PAL) |
| resistance to electrostatic discharge | 6 kV conforming to IEC 61000-4-2 level 3 |
| cut-out dimensions | 204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm |
| touch sensitive zone | 1024 x 1024 |
|---|---|
| touch panel | Analogue |
| backlight lifespan | 54000 hours |
| brightness | 8 levels via touch panel |
| contrast | 8 levels via touch panel |
| character font | Chinese (simplified Chinese) Taiwanese (traditional Chinese) ASCII (European characters) Japanese (ANK, Kanji) Korean |
| [Us] rated supply voltage | 24 V DC |
| supply | External source |
| supply voltage limits | 19.2…28.8 V |
| inrush current | 30 A |
| power consumption in W | 28 W |
| local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| number of pages | Limited by internal memory capacity |
| downloadable protocols | Telemecanique Modicon FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| realtime clock | Built-in |
| data storage equipment | 1 Compact Flash card >= 1 GB |
| use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
| port Ethernet | 10BASE-T/100BASE-TX |
| product mounting | Flush mounting |
| fixing mode | By 4 spring clips By 4 screw clamps |
| front material | Aluminium alloy |
| enclosure material | PPT |
| marking | CE |
| width | 215 mm |
| height | 170 mm |
| depth | 60 mm |
| net weight | 1.8 kg |
| immunity to microbreaks | 10 ms |
|---|---|
| standards | EN 61131-2 FCC Class A CSA C22.2 No 14 UL 1604 UL 508 IEC 61000-6-2 |
| product certifications | UL Class 1 Division 2 T5 UL Class 1 Division 2 T4A CSA Class 1 Division 2 T5 ATEX zone 2/22 C-Tick cULus CSA Class 1 Division 2 T4A |
| ambient air temperature for operation | 0…50 °C |
| ambient air temperature for storage | -20…60 °C |
| relative humidity | 10…90 % without condensation |
| operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| vibration resistance | 1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz) 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz) |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.801 kg |
| Package 1 Height | 18.0 cm |
| Package 1 width | 27.0 cm |
| Package 1 Length | 30.5 cm |
