Sale!

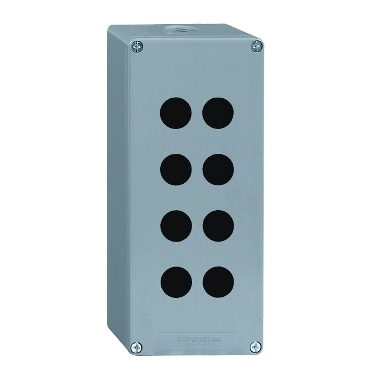

UncategorizedXAPM4508H29
$ 72 Original price was: $ 72.$ 55Current price is: $ 55.
Availability:
7 in stock
Main
| range of product |
Harmony XAP |
| product or component type |
Die-cast empty control station |
| device short name |
XAPM |
| product destination |
For Ø 22 mm control and signalling units |
| product front plate size |
80 x 220 mm |
| usable depth |
74.5 mm |
| number of cut-out |
8 cut-outs |
| colour of base of enclosure |
Blue |
| colour of cover |
Blue |
| material |
Zinc alloy |
| cable entry |
1 hole without blanking plug for ISO 429248 cable gland, clamping capacity: 25 mm |
| device mounting |
Flush |
| IP degree of protection |
IP65 conforming to IEC 60529 |
Complementary
| number of vertical rows |
2 |
| net weight |
1.37 kg |
Environment
| protective treatment |
TC |
| ambient air temperature for storage |
-40…70 °C |
| ambient air temperature for operation |
-40…70 °C |
| overvoltage category |
Class I conforming to IEC 60536
Class I conforming to NF C 20-030 |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Weight |
1.534 kg |
| Package 1 Height |
8.8 cm |
| Package 1 width |
13.2 cm |
| Package 1 Length |
25.2 cm |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
7 |
| Package 2 Weight |
11.26 kg |
| Package 2 Height |
30.0 cm |
| Package 2 width |
30.0 cm |
| Package 2 Length |
40.0 cm |
