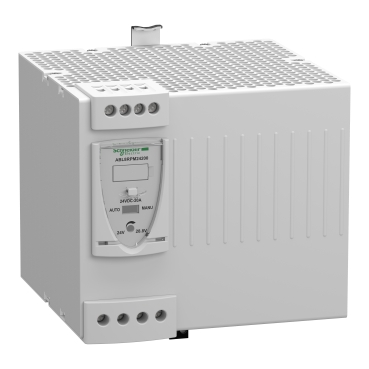

ABL4RSM24200

Main
range of product Modicon Power Supply
product or component type Power supply
Power supply type Regulated switch mode
Nominal input voltage 100…120 V AC single phase, terminal(s): N-L1
200…240 V AC phase to phase, terminal(s): L1-L2
Rated power in W 480 W
Output voltage 24 V DC
Power supply output current 20 A
Permissible temporary current boost 1.5 x In (for 4 s)
Anti-harmonic filter Low frequency harmonic currents
Complementary
Input voltage limits 85…132 V AC
170…264 V AC
Inrush current 30 A
Power factor 0.68 at 240 V AC
0.69 at 120 V AC
Efficiency 88 %
Output voltage adjustment 24…28.8 V adjustable
Power dissipation in W 57.6 W
Provided equipment Power factor correction filter conforming to IEC 61000-3-2
Output protection type Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30…32 V, manual reset
Against short-circuits, protection technology: manual or automatic reset
Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset Connections – terminals Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay Screw type terminals: 3 x 0.5…3 x 4 mm², (AWG 22…AWG 12) for input connection Screw type terminals: 1 x 0.5…1 x 4 mm², (AWG 22…AWG 12) for input ground connection Screw type terminals: 4 x 0.5…4 x 4 mm², (AWG 22…AWG 12) for output connection Status LED 1 LED (green and red) output voltage 1 LED (green, red and orange) output current Depth 145 mm Height 125 mm Width 146 mm net weight 1.6 kg Output coupling Series Parallel marking CE Mounting support 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail Operating position Vertical Supply SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 Dielectric strength 2500 V with between input and ground 3000 V with between input and output 500 V with between output and ground Environment Standards CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 Product certifications CCSAus EAC KC RCM UL Environmental characteristic EMC conforming to IEC 61000-6-1 EMC conforming to IEC 61000-6-3 EMC conforming to EN 55024 EMC conforming to IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 Safety conforming to EN/IEC 61204-3 Operating altitude 2000 m IP degree of protection IP20 conforming to IEC 60529 IP10 Ambient air temperature for operation 50…60 °C with derating factor mounting position A < 2000 m -25…50 °C without derating mounting position A < 2000 m Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 20.000 cm Package 1 Width 18.500 cm Package 1 Length 19.500 cm Package 1 Weight 2.811 kg Unit Type of Package 2 P06 Number of Units in Package 2 36 Package 2 Height 75.000 cm Package 2 Width 60.000 cm Package 2 Length 80.000 cm Package 2 Weight 114.956 kg
