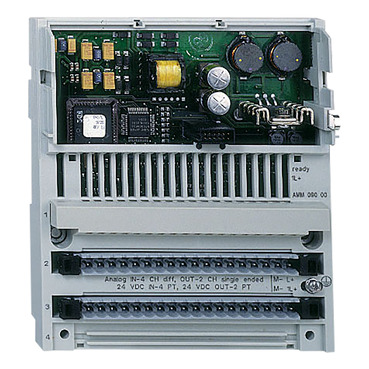

| Range of Product | Modicon Momentum automation platform |
|---|---|
| Product or Component Type | High speed counter module base |
| Group of channels | 2 groups of 3 discrete inputs 2 groups of 2 discrete outputs |
| Number of counter | 2 |
| Discrete input number | 6 |
| Discrete output number | 4 |
| Discrete input logic | Positive |
|---|---|
| Discrete input voltage | – 3…30 V DC 24 V DC |
| Input overvoltage protection | 45 V 10 s |
| Voltage state 1 guaranteed | >= 11 V |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V |
| Discrete output current | 1 A per counter 2 A per module 0.5 A per point |
| Maximum voltage drop | <0.5 V 0.5 A at state on |
| Maximum leakage current | 1 mA DC 24 V |
| Surge current | 5 A 1 ms |
| Response time | < 0.1 ms from state 0 to state 1 output circuit < 0.1 ms from state 1 to state 0 output circuit 3 ms from state 0 to state 1 input circuit 3 ms from state 1 to state 0 input circuit |
| Counting input type | Absolute SSI up, down with 4 sub-modes Incremental up, down, quadrature |
| Counting input voltage | 24 V single ended 5 V differential |
| Counting frequency | 10 kHz single ended 200 kHz differential |
| Counter inputs resolution | 24 bits + sign |
| Counter configuration | Via comm adapter |
| Marking | CE |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | 280 mA 24 V DC |
| Net Weight | 0.46 lb(US) (0.21 kg) |
| Product Certifications | UL CSA |
|---|---|
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 |
| GTIN | 3595861147744 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.28 in (5.800 cm) |
| Package 1 Width | 7.09 in (18.000 cm) |
| Package 1 Length | 10.31 in (26.200 cm) |
| Package 1 Weight | 12.557 oz (356.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 7.355 lb(US) (3.336 kg) |
