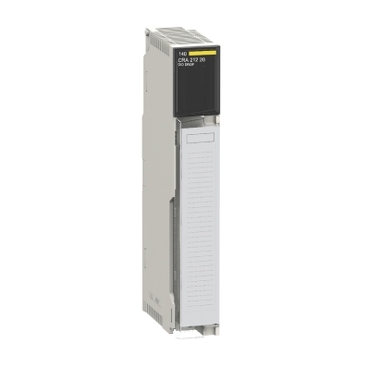

| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | DIO drop interface |
| Number of port | 2 redundant |
|---|---|
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20…30 V |
| Maximum supply current | 1.6 A 24 V |
| Inrush current | 30 A 24 V |
| Maximum buffer time | 1 ms |
| Associated fuse rating | 2.5 A |
| Output voltage | 5.1 V |
| nominal output current | 3 A |
| Minimum load current | 0 A |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| I/O words | 30 I/32 O |
| Typical backplanes | 10 positions 2 positions 6 positions 3 positions 4 positions 16 positions |
| Diagnostics startup | RAM address Checksum RAM |
| Diagnostics run time | Checksum RAM RAM address |
| Power dissipation in W | 11 W |
| Connections – terminals | Terminal block, 7 poles |
| Module format | Standard |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
|---|---|
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | TC |
| Standards | UL 508 |
| Product certifications | UL C-Tick GOST CSA Class 1 Division 2 DNV |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 16.0 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 726.0 g |
